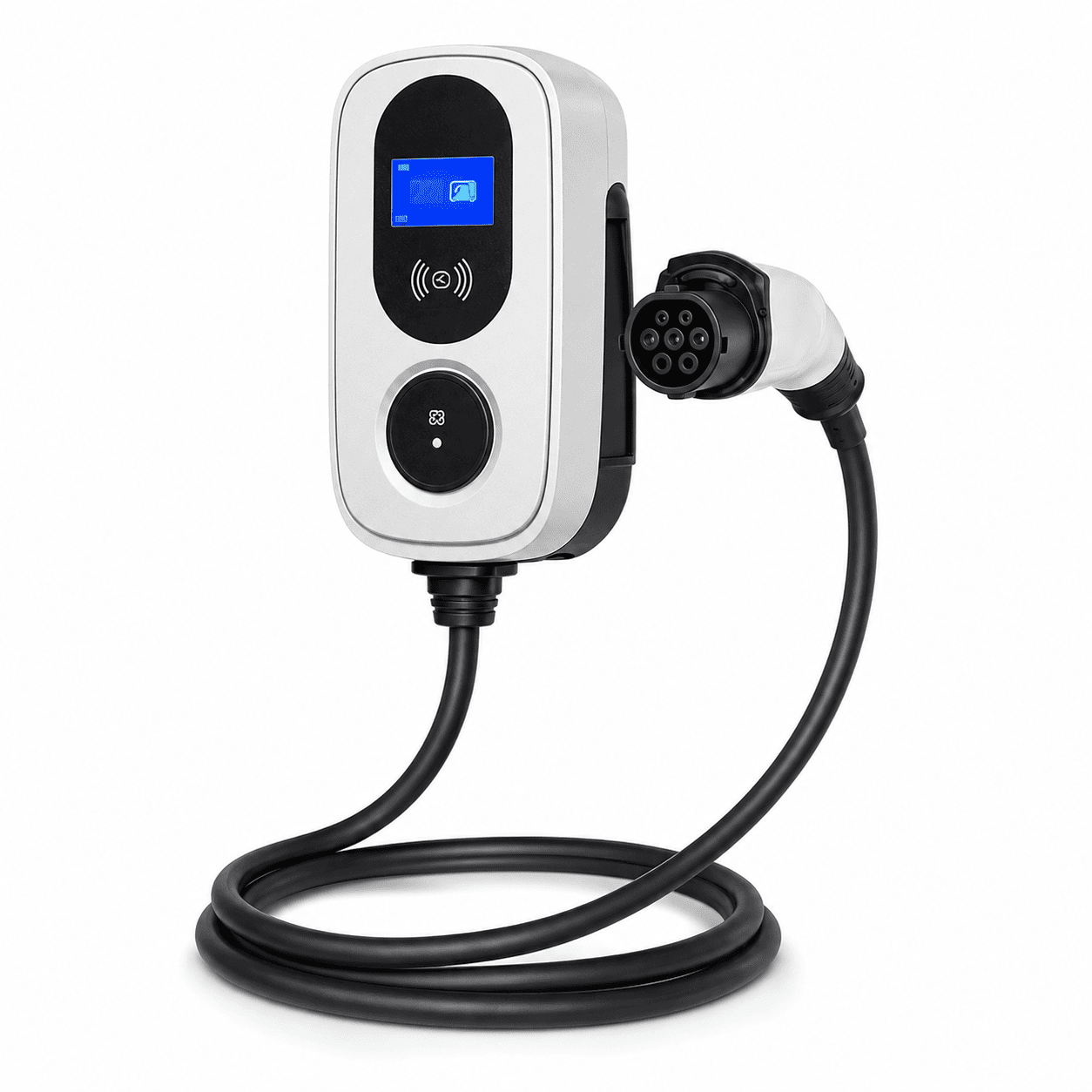

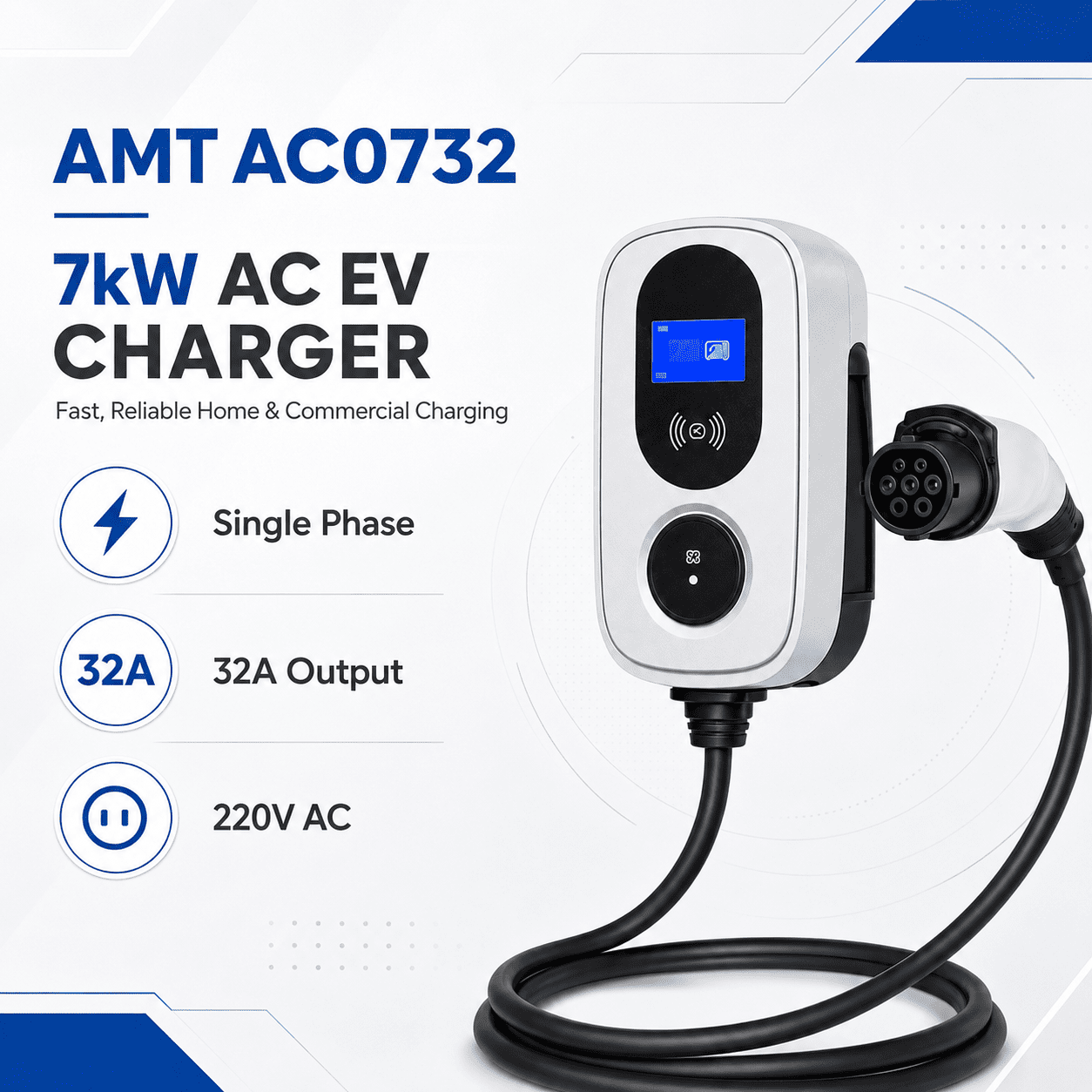

AMT AC0732 7kW AC EV Charger
The AMT AC0732 is a wall-mounted AC electric vehicle charger designed for reliable indoor and outdoor charging. Its compact IP55 enclosure, 4.3-inch LCD touchscreen and flexible installation options make it suitable for homes, workshops, commercial properties and parking facilities.
Key Features
- 7kW rated charging power
- 1Ph + N + PE power connection
- 220V AC ±15% input and output voltage
- 32A maximum input and output current
- 50/60Hz input frequency

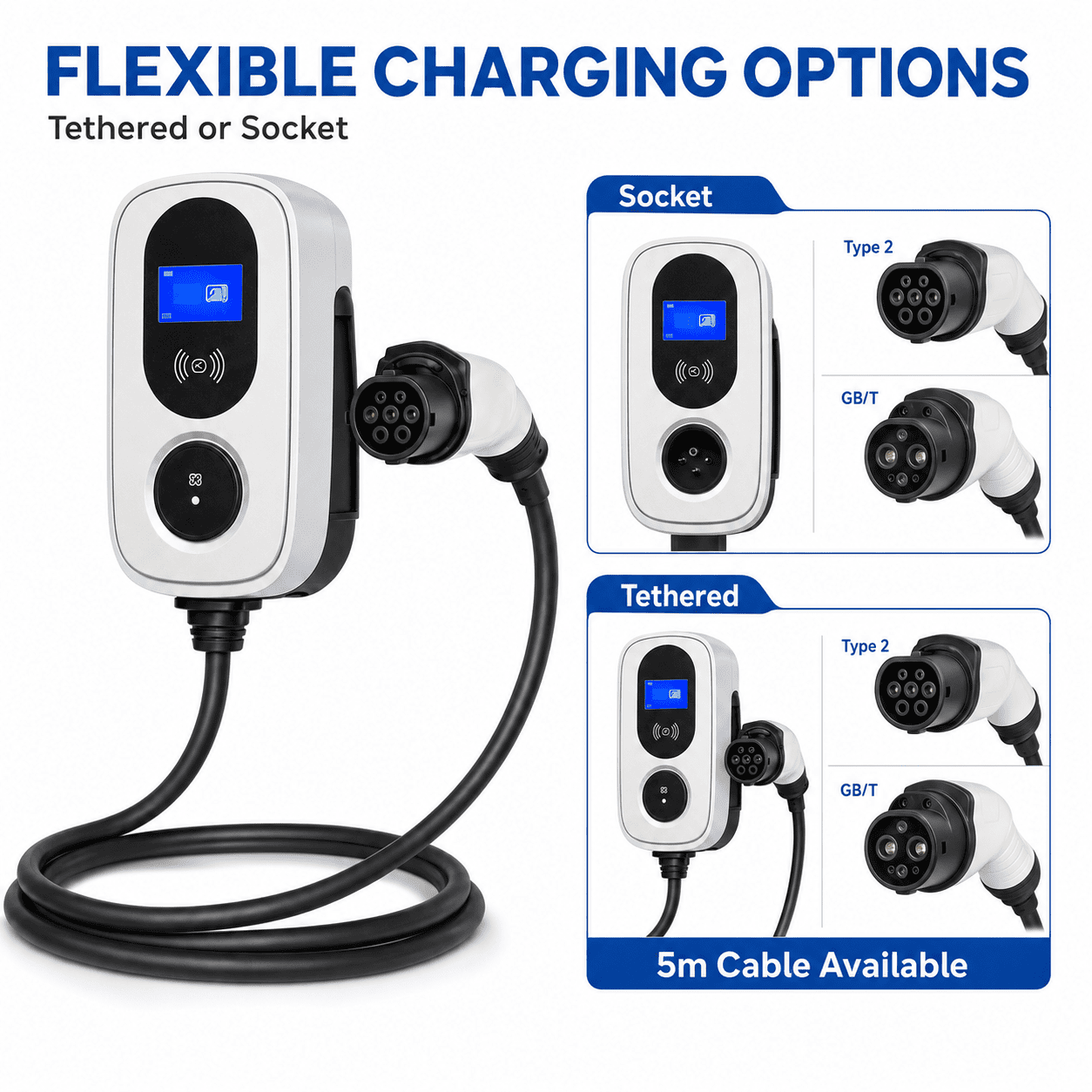

- Socket or tethered configuration
- Type 1, Type 2 and GB/T connector options available

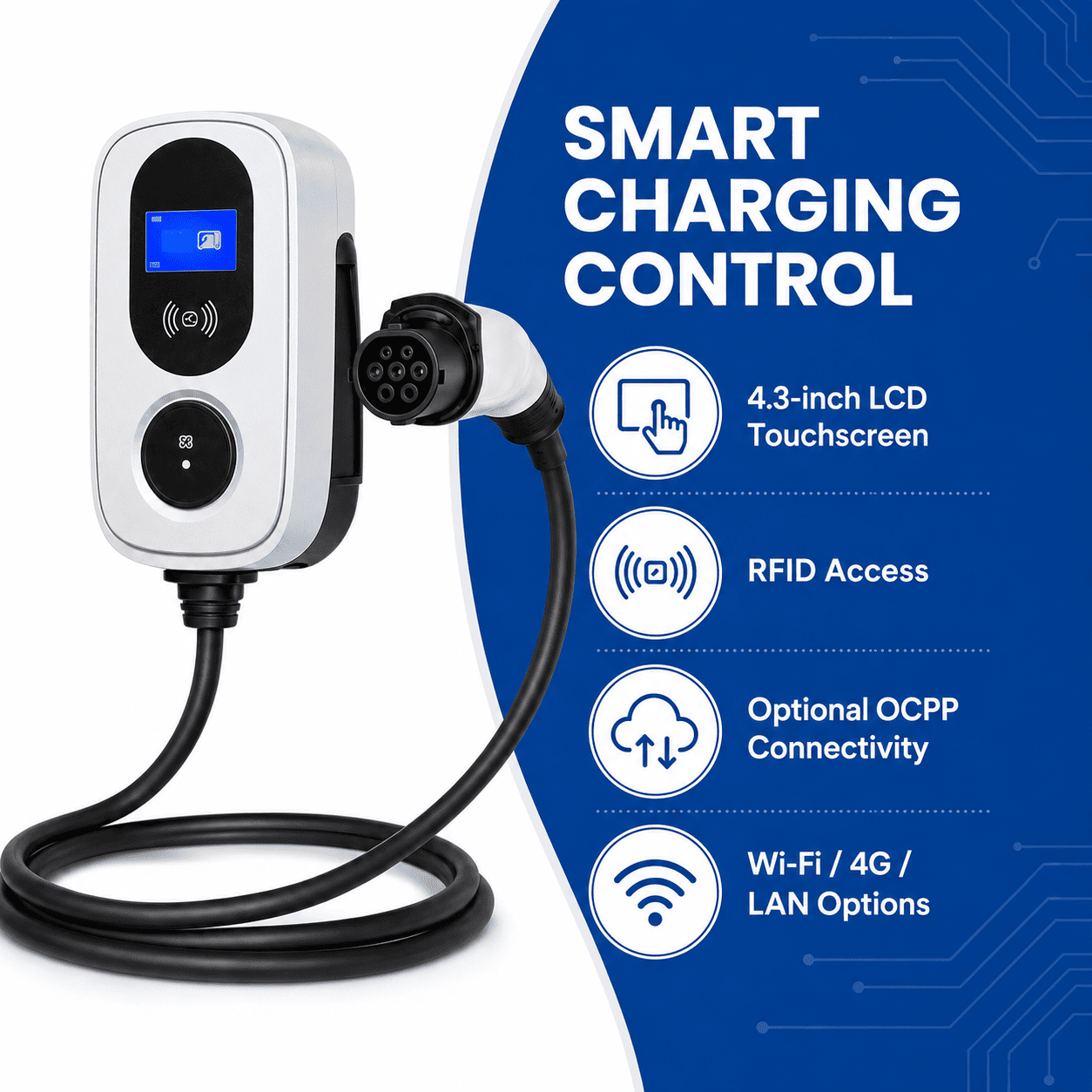

- 4.3-inch LCD touchscreen
- RFID support
- Optional OCPP, Wi-Fi, 4G and LAN connectivity
- Optional energy meter
- IP55 protection level
- Natural cooling
- Suitable for indoor or outdoor installation

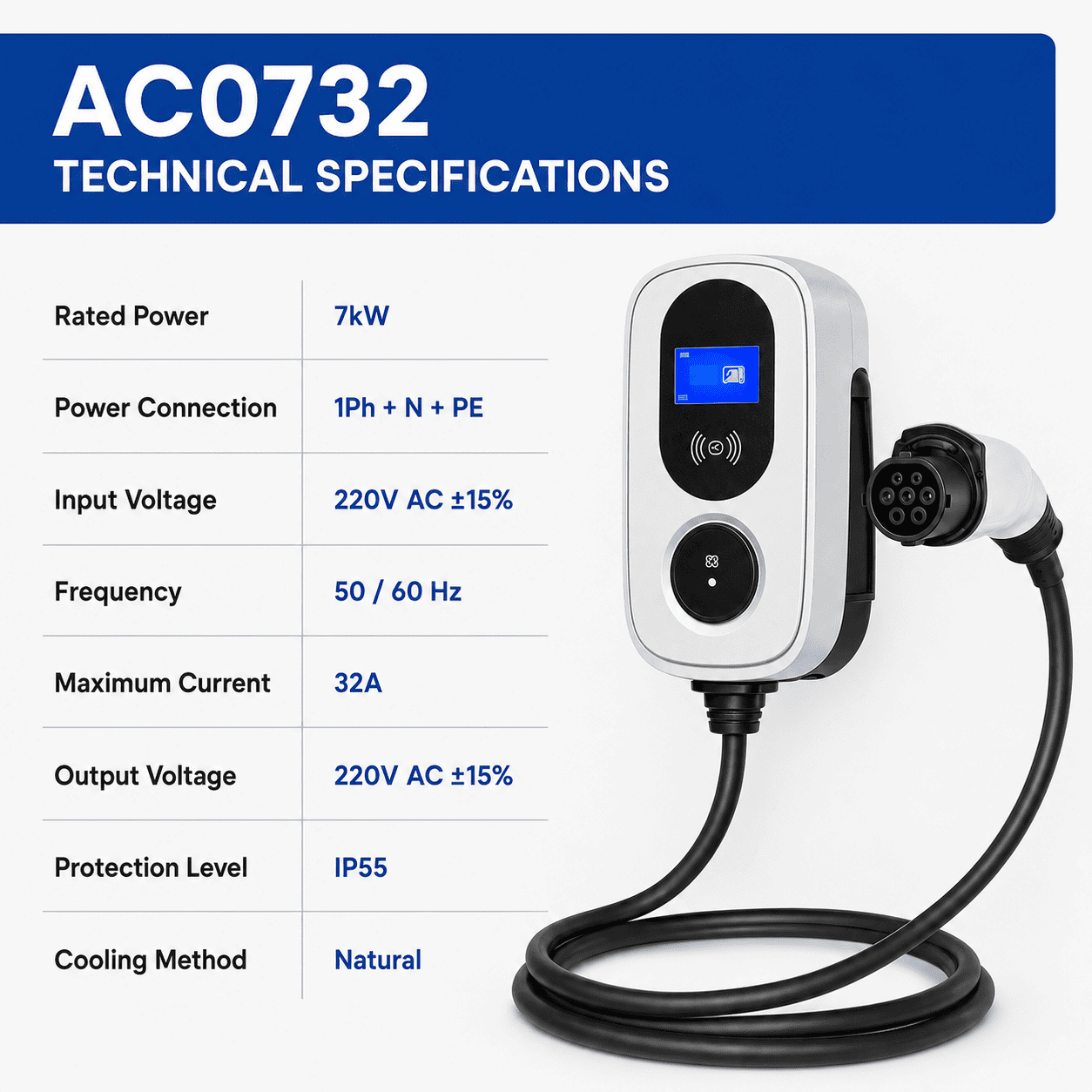

Technical Specifications
| Model | AC0732 |
|---|---|
| Rated Power | 7kW |
| Power Connection | 1Ph + N + PE |
| Input Voltage | 220V AC ±15% |
| Output Voltage | 220V AC ±15% |
| Maximum Current | 32A |
| Frequency | 50/60Hz |
| Display | 4.3-inch LCD touchscreen |
| Protection Level | IP55 |
| Cooling Method | Natural cooling |
| Installation Environment | Indoor or outdoor |
Dimensions and Weight
- Product dimensions: 408 × 210 × 130mm
- Package dimensions: 662 × 412 × 205mm
- Net weight: approximately 8.5kg
- Gross weight: approximately 9kg
Applicable Standards
- IEC/EN 61851-1:2019
- IEC/EN 61851-21-2:2021
- EN 60335-1:2012+A15:2021
- EN 60335-2-65:2003+A12:2022
